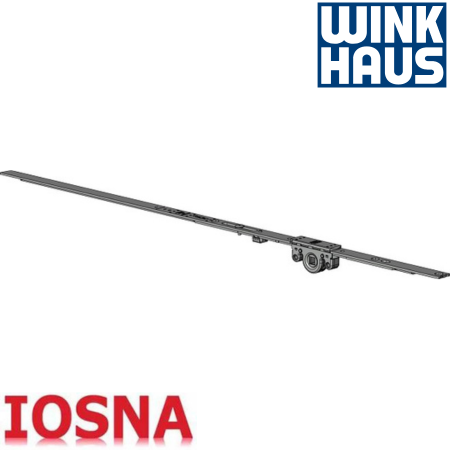

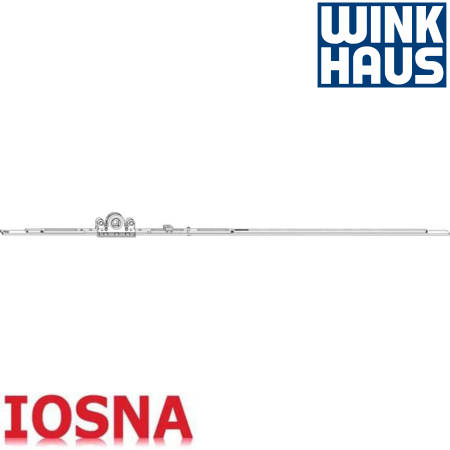

[4926230] GAK.830 FFH 580-830 Winkhaus Espagnolette - Tilt and Turn Hardware
Technical features:
Model: GAK.830 FFH 580 - 830
Brand: Winkhaus
Opening type: Tilt and turn
Compatibility: Aluminium, wood and PVC
Spindle: 15.5mm
Hardware groove axis: 16mm
Handle height: 260mm
FFH range: 580mm - 830mm
Finish: Silver galvanized
Travel direction: Uniform
Mushroom cam travel: 38
Transmission system: Single piece
Clip-on and connectable version
Compatible with DIN left and DIN right
The Winkhaus GAK.830 espagnolette is an excellent option for tilt and turn systems requiring precision, strength and compatibility with European hardware.
The Winkhaus GAK.830 FFH 580 - 830 espagnolette is hardware designed for aluminium, wood and PVC tilt and turn windows. This model incorporates a 15.5mm spindle, compatibility with a 16mm hardware groove axis and a fixed 260mm handle. It is designed for windows with an FFH range between 580 mm and 830 mm.
Requires 2 screws, not included.
